Bamboo containment · Planning guide
How to Control Spreading Bamboo with a Root Barrier
Plan a complete containment line, choose the material from site conditions, build a dependable seam, and keep the finished edge easy to inspect.
Treat containment and removal as different project goals.
Measure the complete boundary before selecting or cutting material.
Keep the finished system accessible for routine inspection.
Controlling spreading bamboo starts with a clear growing area and one continuous boundary. Bamboo Shield combines cut-to-length HDPE root barrier, three climate-oriented profiles, connecting hardware, and a field guide for building a line that stays visible and inspectable.
A root barrier contains the area inside the planned line. Bamboo or rhizomes already outside that line still need a separate removal or shoot-management plan.
1. Identify running or clumping bamboo
Running bamboo sends underground rhizomes outward from the planting and is the main containment use for Bamboo Shield. Clumping bamboo expands from a central crown and follows a different growth pattern. Identify what is planted, where it is already growing, and how much room the planting should keep before laying out the trench.
2. Choose from the Bamboo Shield climate range
- 24 inches wide × 60 mil thick — colder-climate profile: the shallowest and lightest option in the Bamboo Shield range.
- 30 inches wide × 80 mil thick — warmer-climate profile: the middle depth and thickness, adding six inches of width over the 24-inch profile.
- 36 inches wide × 100 mil thick — tropical-climate profile: the deepest and thickest Bamboo Shield.
Use the climate range as the starting point, then confirm the bamboo's growth habit, planned installed depth, soil and frost conditions, trench access, nearby structures, and qualified local guidance. Compare all three Bamboo Shield profiles.
3. Measure the complete containment line
Mark the entire growing area before excavation begins. Include the seam location, paths, irrigation, drainage, utilities, and nearby structures. Measure the full perimeter, add the connection allowance required by the installation plan, and round the order up to a whole foot.
Each Bamboo Shield profile is cut in one-foot increments. One order line is intended to be supplied as one continuous cut when stock and shipping limits allow.
4. Plan the connection before trenching
The two ends are part of the containment system. Choose a seam location that will remain accessible and use compatible mechanical connecting hardware sized for the barrier width. Tape can help hold the material during layout, but it is not the permanent connection.
5. Keep the top edge visible

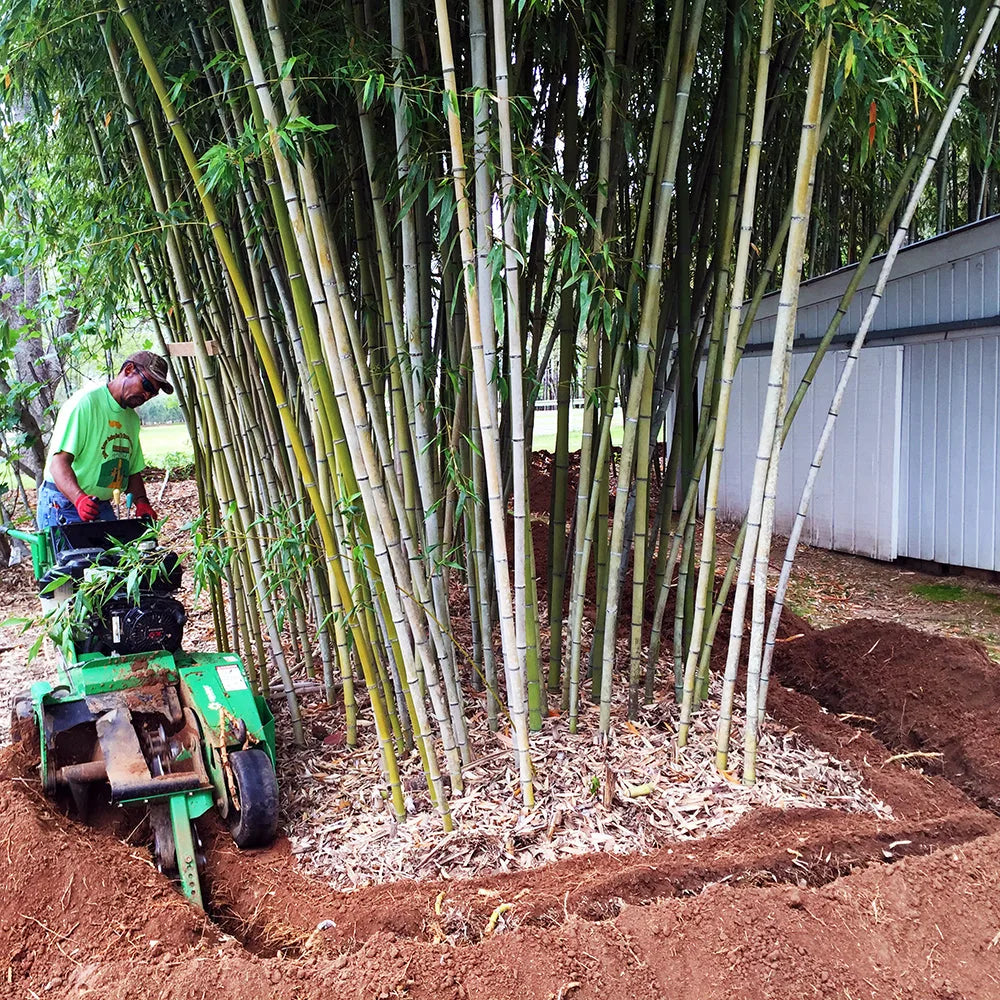

Follow the Bamboo Shield installation guide for trench preparation, smooth-face orientation, connection, and layered backfill. Leave at least two inches above finished soil so surface-running rhizomes remain easier to see during routine inspection.
6. Inspect the boundary as the landscape changes
Recheck the exposed edge and seam after soil settles and during routine landscape maintenance. Watch for soil or mulch covering the inspection edge, visible rhizomes crossing the top, disturbance near the seam, or new growth outside the intended area. Address changes while the complete line remains easy to reach.
Questions before ordering
The practical details.
Use the application and installation pages for the complete material and field sequence.
Does a root barrier remove existing bamboo?+
No. The barrier is used to plan a containment boundary. Bamboo that is already outside that boundary needs a separate removal or management plan.
How deep should a bamboo barrier be?+
There is no universal depth in the Protech guidance. Compare the 24-inch, 30-inch, and 36-inch material widths against the planned installed depth, site conditions, and qualified local guidance. The current installation method also calls for leaving at least two inches visible above finished soil.
Can the barrier be buried flush with the soil?+
That is not the documented bamboo-containment finish. The current guide calls for at least two inches above finished soil so surface-running rhizomes are easier to see.
How much barrier should I order?+
Measure the complete containment line and add the seam or connector allowance required by the installation plan. Order that total in one-foot increments.
Can tape be used to join the ends?+
Tape may hold the ends during layout, but it is not the permanent connection. Use compatible mechanical connecting hardware and follow the current connector instructions.
Is a bamboo barrier maintenance-free?+
No maintenance-free claim is made. Keep the exposed edge and seam accessible, inspect them during routine landscape maintenance, and recheck the installation after soil settlement.
What should I check before trenching?+
Confirm the containment line, seam location, utilities, irrigation, drainage, nearby structures, access, and intended growing area. Use the appropriate utility-locate service before excavation.
