10-Inch HDPE Grass & Landscape Barrier Connecting Kit
10-Inch HDPE Grass & Landscape Barrier Connecting Kit
- Free shipping in the lower 48
- Ships same or next business day by FedEx
- 30-day returns
Sold separately from the barrier or wrap it goes with. For a connecting kit, pick the depth that matches your barrier and order one kit per joint. Not sure which one you need? Ask us.

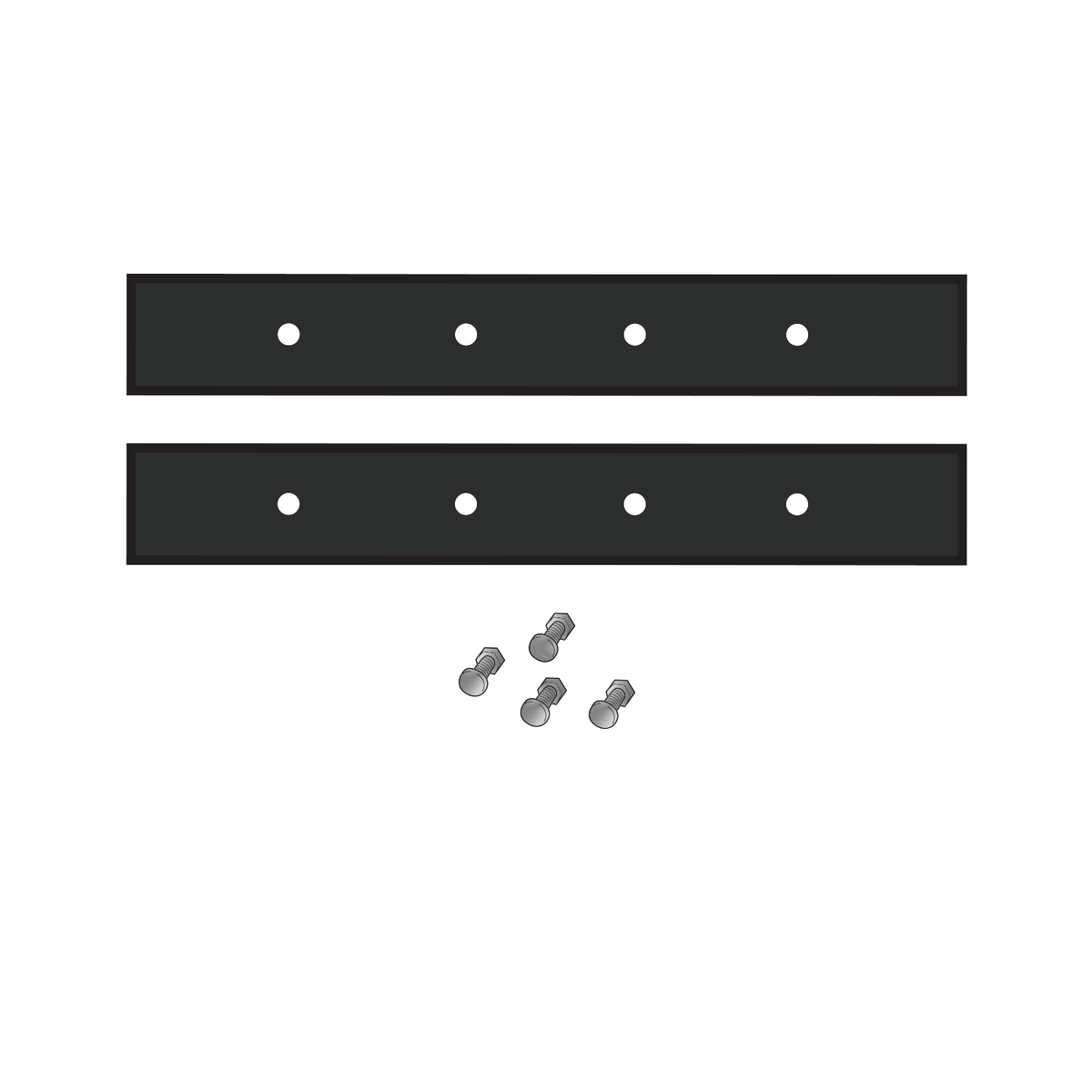

Connect two ends of the 10-inch HDPE landscape and grass barrier profile. This dedicated seam kit uses two pre-drilled 200-mil HDPE clamp strips with 316 stainless steel hardware and is sized for the 100-mil × 10-inch Protech barrier.
- Made for the 10-inch landscape and grass barrier profile
- Two pre-drilled HDPE clamps, installed on opposite faces of the seam
- 316 stainless steel hardware
- Installation calls for a drill with a 1/4-inch bit and two 10 mm tools

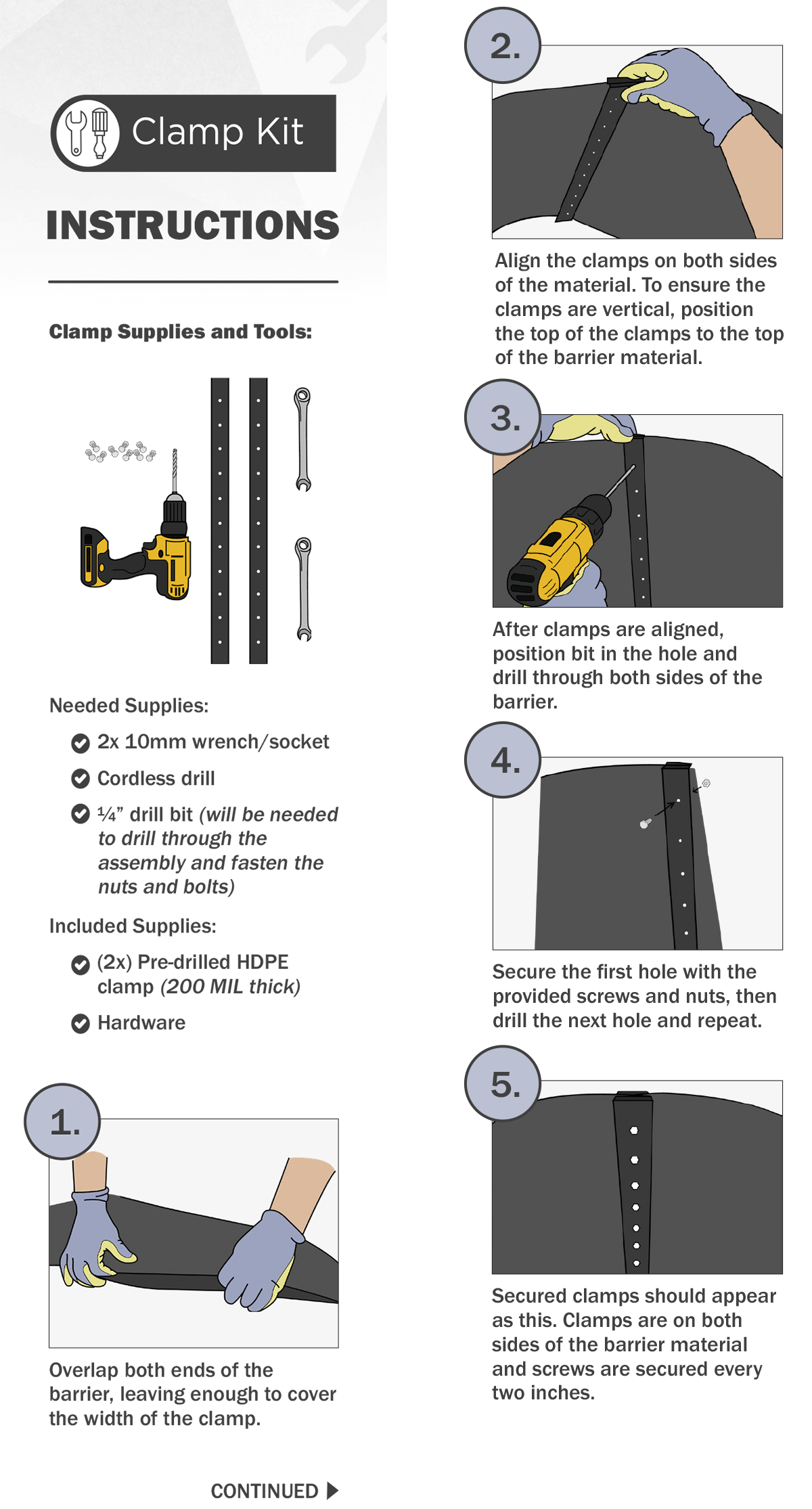

Overlap and align the barrier ends, use the clamp holes as a drilling guide, then fasten sequentially at approximately 2-inch intervals as shown on the included installation card. Inspect the connection before backfilling.
The connecting kit for Grass Barrier, the 10 in tall edging strip.
This is a separate HDPE-clamp connection, not a shorter version of the stainless-steel strap system used on deeper barriers.
- Fits
- Grass Barrier: 100 mil HDPE, 10 in tall
- Used for
- Grass Barrier joints
- Ordering unit
- One installation kit
Install with the barrier in mind.
-
Overlap the ends a little
Overlap the two barrier ends a little inside the clamps; it makes the joint easier to line up. Keep the top edge aligned. You don’t need extra barrier length for it.
-
Position both clamps
Place the two pre-drilled 200 mil HDPE clamps over the joint.
-
Fasten the seam
Fasten the clamps with the included 316 stainless hardware, following the instructions in the kit. Use one kit per joint.
Compatibility, made clear.
What comes in the Grass Barrier connecting kit?
Two pre-drilled 200 mil HDPE clamps with 316 stainless steel hardware. Use one kit per joint.
Does it fit the deeper root barriers?
No. This connector is made for Grass Barrier, the 100 mil, 10 in tall edging strip. For Bamboo Shield and Sidewalk Shield, use the HDPE barrier connecting kit.
Is Grass Barrier included?
No. The connector is sold as installation hardware; order Grass Barrier separately.
