Stainless Steel HDPE Barrier Connecting Kit
Stainless Steel HDPE Barrier Connecting Kit
- Free shipping in the lower 48
- Ships same or next business day by FedEx
- 30-day returns
Sold separately from the barrier or wrap it goes with. For a connecting kit, pick the depth that matches your barrier and order one kit per joint. Not sure which one you need? Ask us.

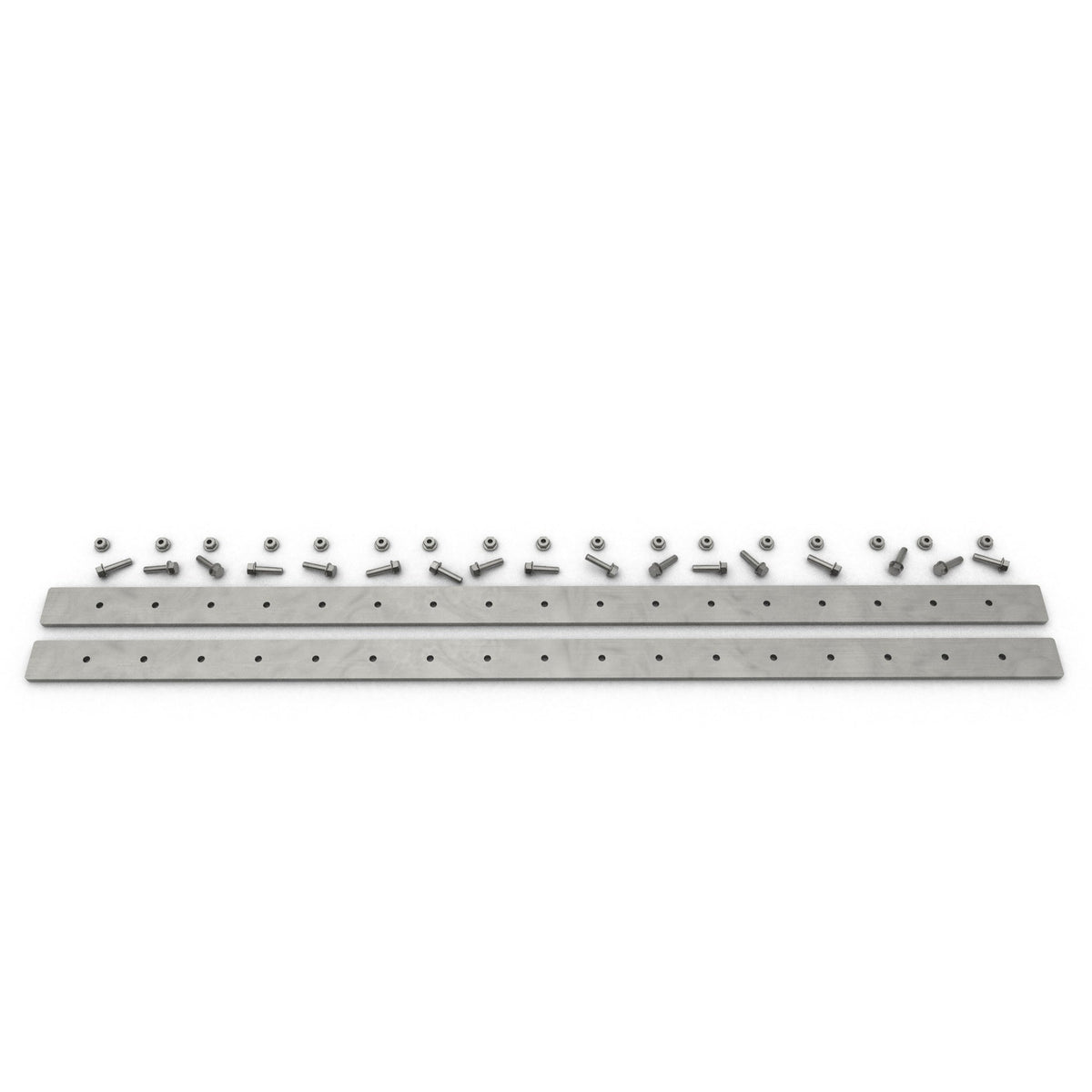

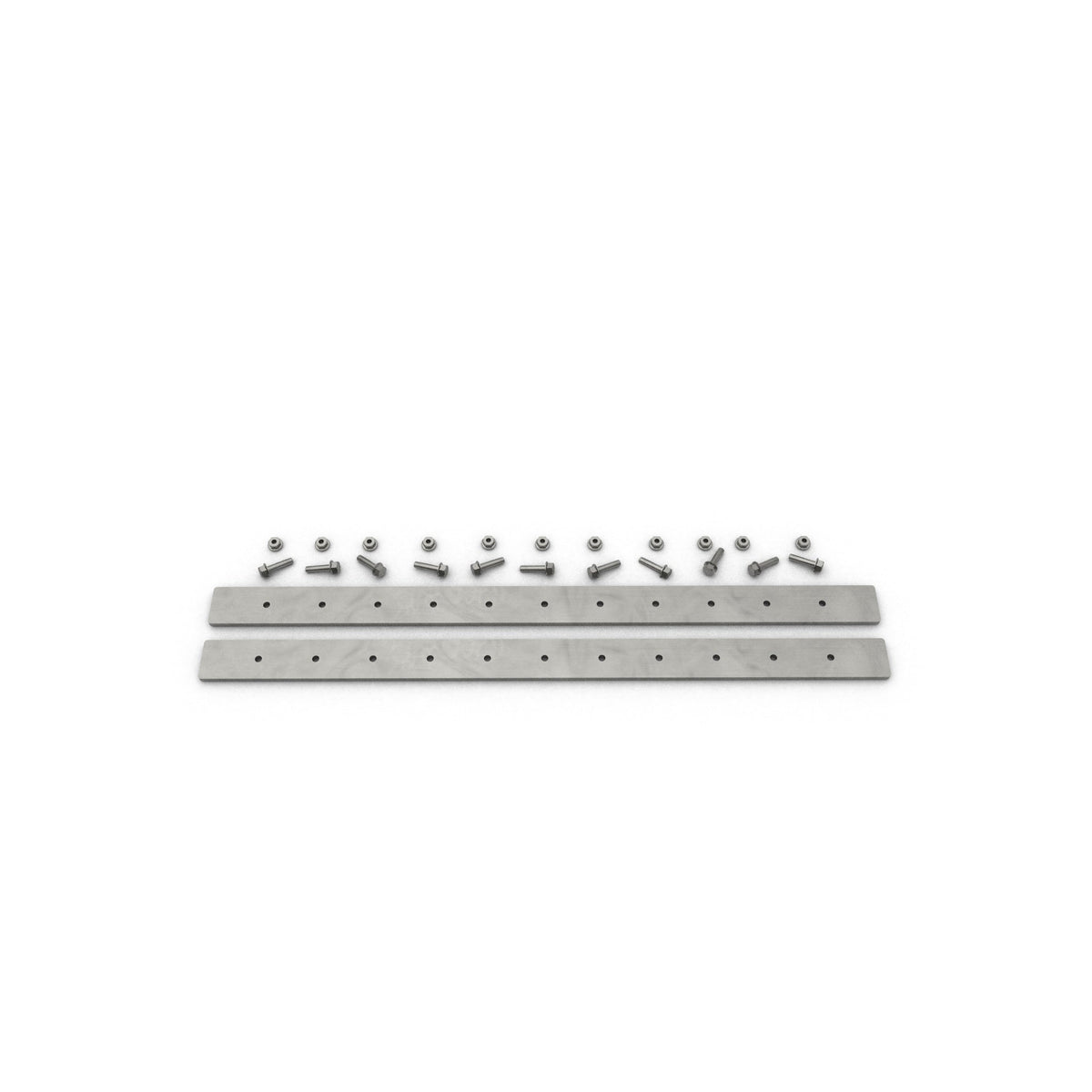

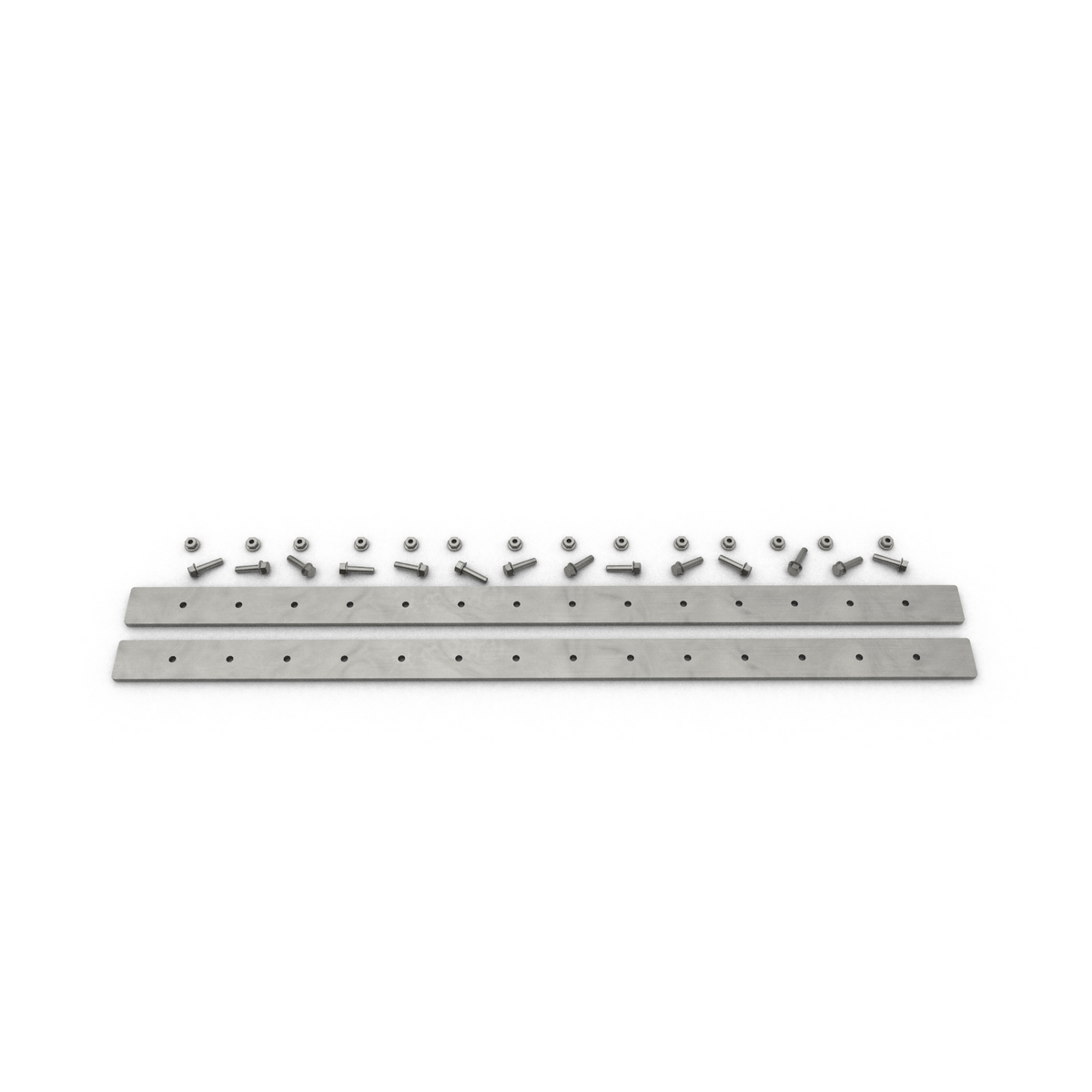

Join the ends of a compatible HDPE barrier for an enclosure or continuous run. Each depth-sized kit includes two 1.5-inch-wide, 10-gauge (3.5 mm) stainless steel straps plus mounting hardware.
- Choose the kit depth that matches the barrier width
- Two stainless steel clamping straps plus hardware
- Compatible with the Bamboo Shield and Sidewalk Shield application systems
- Installation calls for a drill with a 1/4-inch bit and two 10 mm wrenches
Use this hardware with the matching HDPE profile and follow the barrier installation guide before backfilling.
One connection system. Four barrier depths.
Choose the stainless-steel connector with the same nominal depth as the HDPE barrier: 18, 24, 30, or 36 inches.
- Fits
- 18, 24, 30, or 36 in HDPE barrier
- Used for
- Bamboo containment and tree-root barriers
- Ordering unit
- One installation kit

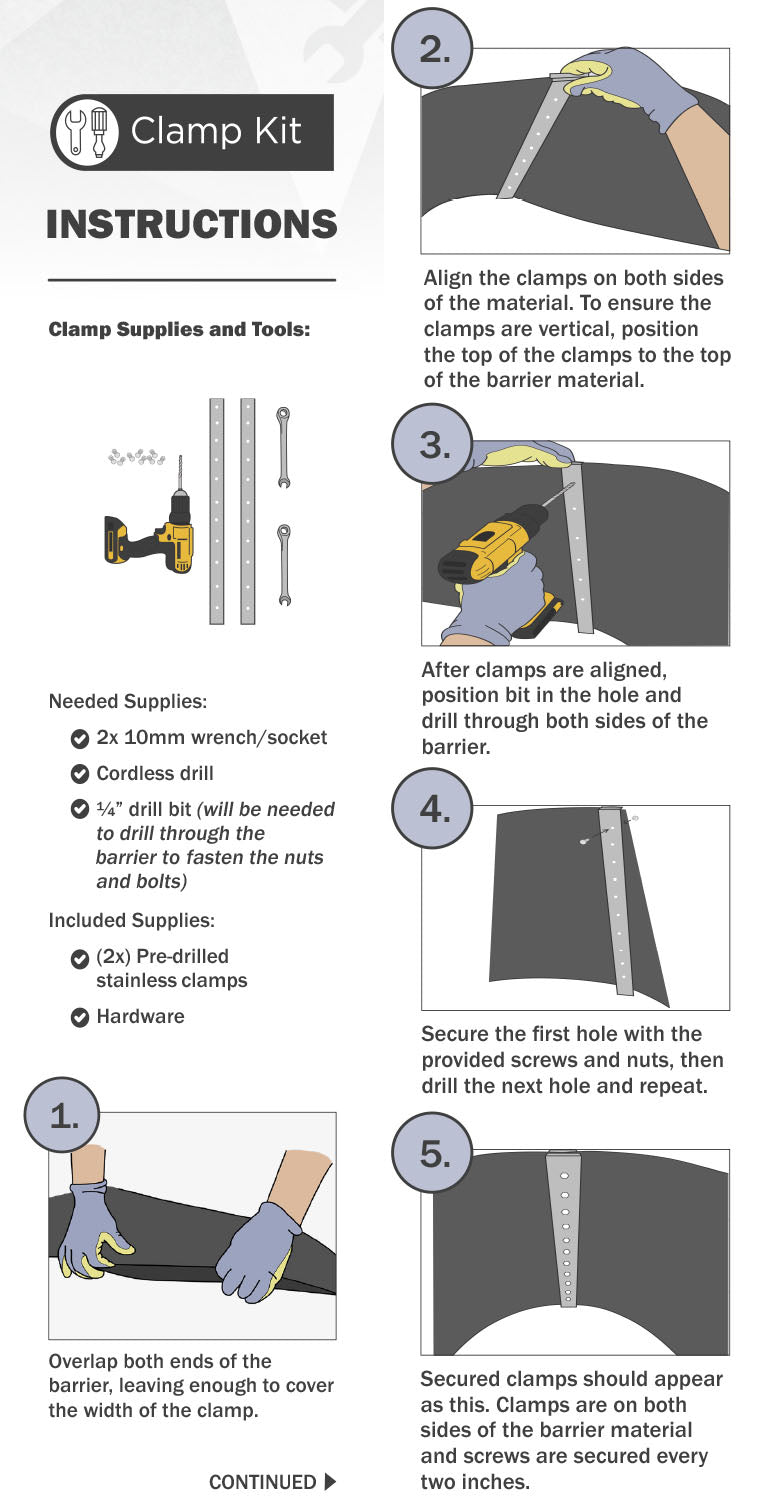

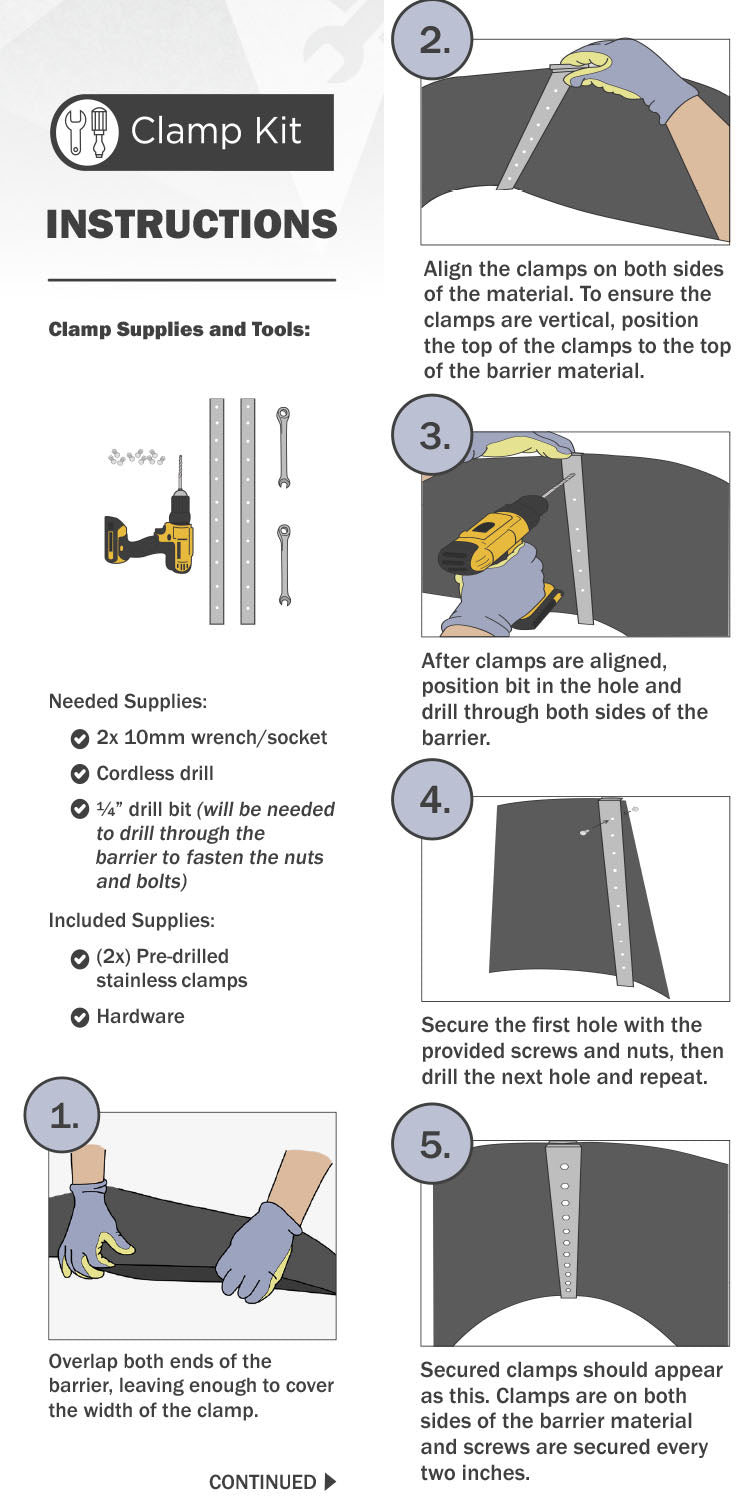

Install with the barrier in mind.
-
Match the depth
Choose the connector with the same nominal depth as the HDPE barrier.
-
Overlap the ends
Overlap the barrier ends at least 12 in and hold them in their final position.
-
Fasten both straps
Fasten the two 1.5 in stainless straps with the included hardware, following the instructions in the kit, then check the joint before backfilling.
Compatibility, made clear.
What comes in the barrier connecting kit?
Two 1.5 in stainless steel straps plus hardware, sized to the barrier depth. Use one kit per joint.
Which depth should I order?
Choose the same nominal depth as the HDPE barrier: 18, 24, 30, or 36 inches.
Does this fit both bamboo and tree-root barriers?
Yes, when the connector depth matches the nominal depth of the compatible HDPE barrier. Confirm the selected depth before ordering.
